How to Design a Compliance Workflow That Is Traceable
A traceable compliance workflow makes every action, approval and decision easier to follow. Learn how to structure roles, audit trails, document history and reporting so compliance processes remain clear, accountable and easy to verify.
A compliance workflow should do more than move a task from one person to another.
It should be able to explain the journey.
Who submitted the record? Who reviewed it? What was changed? Why was it returned? Who approved the final decision?
If the answer to those questions requires opening five email threads, checking a spreadsheet and asking someone who happens to remember what happened, the workflow is probably not as traceable as it should be.
A well-designed compliance system should make the history of every important action clear, structured and easy to retrieve.
Here is how to build that into the workflow from the start.
Start With a Clear Process Lifecycle
Before configuring approvals or building screens, define the full lifecycle of the process.

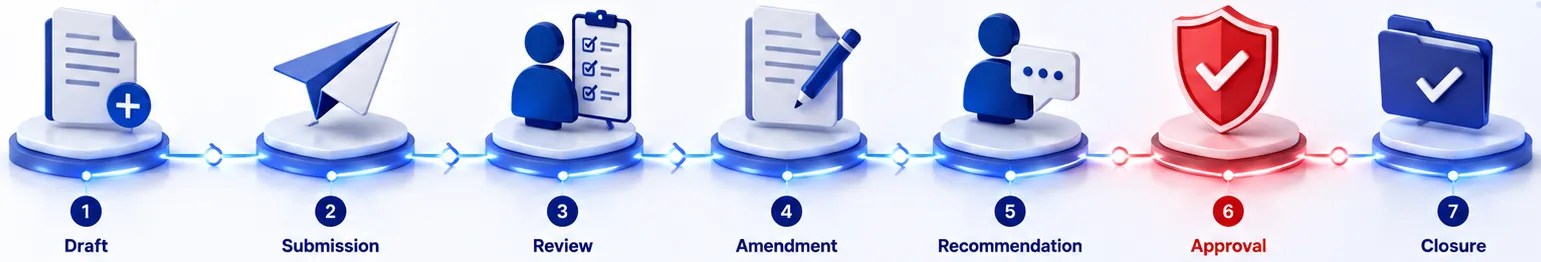

A simple example might look like:
The exact stages will vary depending on the organisation, but each stage should answer three questions:
Who owns it?
What can they do?
What happens next?
For example, a reviewer may be allowed to:
Accept the submission
Return it for amendment
Add comments
Request supporting documents
But they may not be allowed to issue the final approval.
Defining these boundaries early makes the workflow easier to understand, build and audit later.
1. Give Every Stage a Clear Owner
Traceability begins with accountability.
Each workflow stage should belong to a defined role rather than simply “someone in the department”.
Typical roles may include:
Requestor
Reviewer
Evaluator
Recommending Officer
Approver
Auditor
System Administrator
The system should know which role is responsible for each action.
This becomes especially important when several departments are involved.
If three people can approve the same item, the system should still be able to show exactly who made the decision.
Clarity beats assumption every time.
2. Separate Important Responsibilities
Compliance workflows often require segregation of duties.
In simple terms, the same person should not always be allowed to create, review and approve their own work.

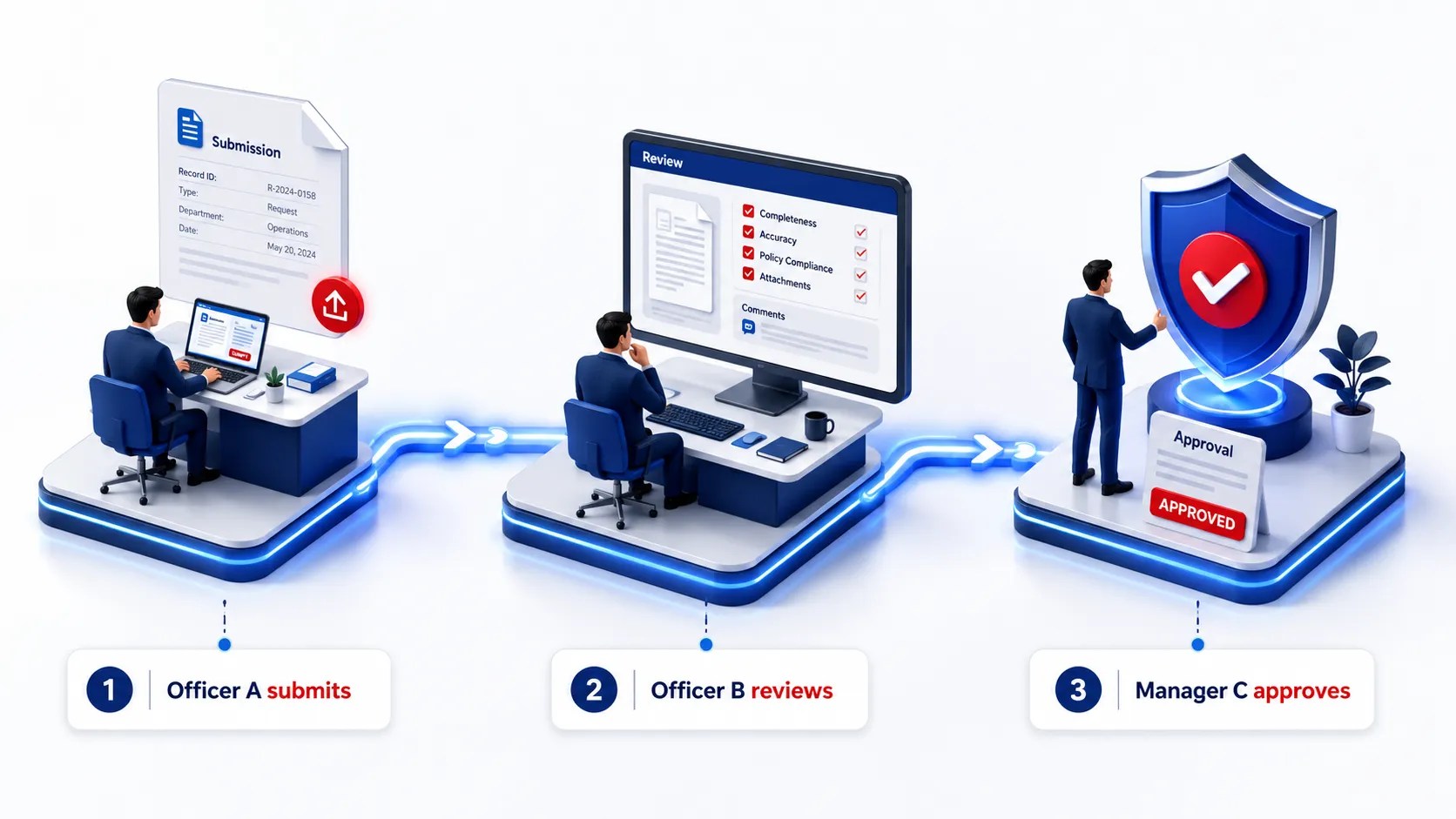

For example:
The system should enforce this rule instead of relying on users to remember it.
This helps prevent:
Conflicts of interest
Unauthorised approvals
Accidental self-approval
Weak accountability
Audit findings later
Role-based access control should therefore be designed around actual organisational authority, not simply job titles.
3. Record Every Meaningful Action
A traceable workflow needs a reliable audit trail.
That does not mean recording every mouse click.
It means capturing the actions that matter.
These may include:
Record creation
Submission
Data changes
Document uploads
Review decisions
Approval
Rejection
Return for amendment
Status changes
Reassignment
Administrative changes
For each event, the system should ideally record:
Who + What + When + Where in the workflow
For sensitive activities, it may also need to record:
Previous value + New value + Reason for change
That small amount of context can make a very large difference during an audit or investigation.
4. Make Important Decisions Explainable
Changing a status from “Under Review” to “Rejected” tells you what happened.
It does not tell you why.
For important actions, require the user to provide a reason or comment.
This is particularly useful for:
Rejection
Return for amendment
Cancellation
Suspension
Manual override
Reopening a completed case
Approval with conditions
Instead of relying on a separate email saying:
“Please refer to our discussion yesterday.”
The explanation stays with the record.
Future reviewers will thank you.
5. Preserve Document and Version History
Compliance decisions are often based on supporting documents.
The challenge appears when those documents change.
Imagine:
A user uploads Version 1.
The reviewer requests an amendment.
Version 2 is uploaded.
The approver makes a decision.
Months later, someone opens the record.
Which version was actually reviewed?
A traceable system should preserve:
Previous document versions
Upload dates
Uploaded-by information
Replacement history
Reviewer comments
Links between the document and decision
The latest version should not erase the history that came before it.
Traceability is about preserving the journey, not just the destination.
6. Control How Records Move Between Stages
A workflow should not allow records to jump freely between statuses.
Each transition should have rules.
For example:
Draft → Submitted
Allowed only when all mandatory fields are complete.
Submitted → Under Review
Allowed when a reviewer has been assigned.
Under Review → Approved
Not allowed unless the required recommendation is completed.
Approved → Reopened
Requires authorised personnel and a recorded reason.
This makes the workflow predictable.
It also prevents users from accidentally bypassing important controls simply because a button happened to be available.
7. Design for Exceptions Too
Real operations rarely follow the perfect happy path every time.
People go on leave.
Documents expire.
Applications are withdrawn.
Approvers change.
Cases need to be reopened.
A good compliance workflow should therefore define how exceptions are handled.
Consider scenarios such as:
Reassignment
Delegated approval
Withdrawal
Cancellation
Resubmission
Expired cases
Reopening
Escalation
Manual intervention
And most importantly, these exceptions should also be traceable.
A manual override should never look like nothing happened.
If the normal process was bypassed, the system should clearly show who did it and why.
8. Add Timelines and Escalation Rules
Traceability is not only about what happened.
It should also help answer:
Where is the case now, and how long has it been there?
Useful workflow controls include:
Due dates
SLA timers
Reminder notifications
Overdue indicators
Escalation rules
Pending-task dashboards
For example:
If a review remains pending for more than five working days, the system may notify the reviewer and escalate the case to their supervisor.
This turns traceability into something operationally useful.
Instead of discovering a delay after someone complains, management can see it developing.
9. Make Reporting Part of the Workflow
A traceable system should make reporting easier, not create another reporting exercise.
Management should be able to see information such as:
Number of submissions
Current workflow status
Pending approvals
Average processing time
Overdue cases
Rejection rates
Common amendment reasons
Approval turnaround time
Compliance teams may also need reports showing:
Who approved specific records
Changes made during a period
Administrative actions
User access history
Workflow exceptions
When structured data is captured throughout the process, reporting becomes a natural output of the workflow.
No separate spreadsheet required.
10. Protect the Audit Trail
An audit trail has very little value if users can casually edit it.
Audit information should be protected from unauthorised modification.
Depending on the system, this may include:
Restricted access to logs
Tamper-resistant records
Time-stamped transactions
Controlled administrator privileges
Retention policies
Backup and recovery
Monitoring of privileged actions
Even system administrators should leave a trace when performing significant administrative changes.
The person managing the audit trail should not be invisible inside it.
11. Test the Workflow Using Real Scenarios
Before rollout, do not test only the normal process.
Test the awkward situations too.
For example:
What happens when an approver rejects a case?
Can the user resubmit it?
Is the original submission still visible?
What happens when the assigned reviewer leaves the organisation?
Can someone approve their own request?
What if a document is replaced after approval?
Can a closed case be reopened?
Does the system record who performed the override?
These scenarios are where traceability gaps usually appear.
Finding them during testing is much more pleasant than finding them during an audit.
A Good Workflow Should Be Able to Tell Its Own Story
The strongest compliance workflows connect four things:
Every important action has an owner.
Every significant change leaves a record.
Every approval follows the correct authority.
Every exception has a reason.
And every decision can be traced back to the information available at the time.
That is what turns a digital workflow into a governance mechanism.
At Webgeaz, we believe enterprise systems should not simply move information faster.
They should make operations clearer, accountability stronger and decisions easier to understand.
Because when someone asks, “How did we arrive at this decision?”
The system should already have the answer.
